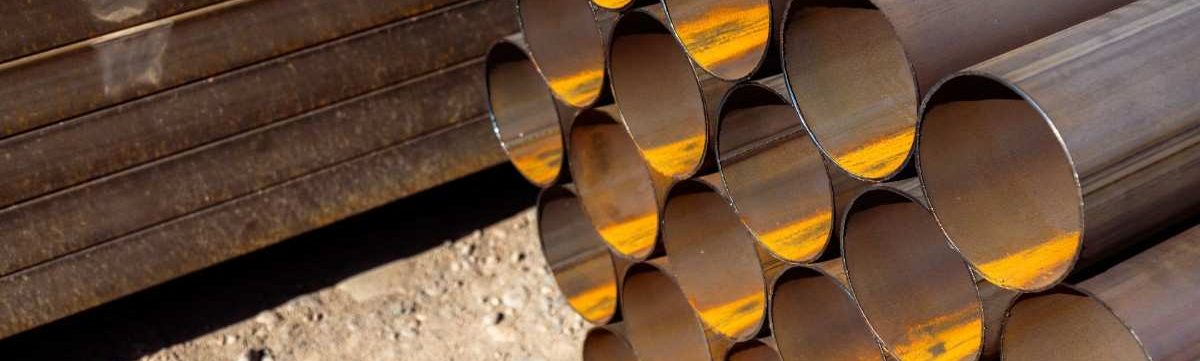

Welded steel pipe is carbon steel pipe formed by rolling flat steel into a cylindrical shape and joining the seam through welding, rather than extruding it seamlessly from a solid billet. Several welding methods exist within this category, each suited to different diameter ranges, pressure requirements, and project economics.
Welded pipe dominates industrial piping for good reason: it’s cost-effective, available in a far wider diameter range than seamless production allows, and has a proven multi-decade track record across gas, water, and structural infrastructure. B&W Pipe’s expertise spans multiple welding technologies from small-diameter ERW to large-diameter DSAW, matching the right method to each application rather than offering a one-size-fits-all product.
Our Welded Pipe Manufacturing Options
ERW (Electric Resistance Welded)
Produced by rolling flat steel strip into a cylinder and welding the longitudinal seam using electrical resistance heat, with no filler metal required. ERW is the cost-effective standard for small- to medium-diameter applications. B&W Pipe’s ERW line covers 2-3/8″ to 26″ OD in grades from ASTM A500B and A53B through API 5L X70.
HFW (High-Frequency Welded)
A modern evolution of the ERW process uses high-frequency current for a more precise, consistent weld. HFW pipe is supplied within B&W Pipe’s ERW product line, delivering improved seam quality for applications demanding tighter dimensional consistency.
DSAW (Double Submerged Arc Welded)
Submerged arc welding is applied to both the interior and exterior seams, making DSAW the premium option for large-diameter, high-strength applications, including cost-effective large-diameter transmission and distribution service. B&W Pipe’s DSAW range covers 16″ to 60″ OD in ASTM A53B and API 5L GR B through X80.
Rolled & Welded
Custom fabricated welded pipe produced outside standard mill production windows, for projects requiring OD and wall thickness combinations that standard inventory doesn’t cover. This is where B&W Pipe’s hard-to-find specialty comes into play most directly.
Key Specifications Available
- Diameter range: Small-diameter applications through extra-large transmission pipe
- Wall thickness: Scales accordingly by manufacturing method (ERW, HFW, DSAW, Rolled & Welded)
- Grades available: ASTM A53, ASTM A500, API 5L (GR B through X80), ASTM A106 for elevated temperature service
- Pressure ratings and load capacities: Calculated per grade, wall thickness, and the applicable ASME or API design standard
- Compliance: Full compliance with ASME, ASTM, and API requirements across every size of B&W Pipe supplies
Key Features and Benefits
Superior Weld Quality and Seam Integrity
Across ERW, HFW, and DSAW manufacturing, weld quality and seam integrity are verified through mill testing and, where required, third-party inspection before pipe reaches the project site.
Excellent Dimensional Accuracy
Modern welding processes, particularly HFW, deliver dimensional consistency that supports precise engineering calculations and reliable field fit-up.
Cost-Effective Compared to Seamless
Welded pipe typically costs 30 to 50 percent less than seamless pipe at equivalent size and grade, a meaningful difference on large-volume projects where seamless performance isn’t required.
Faster Production and Delivery
Welded pipe production is generally faster than seamless manufacturing, supporting tighter project timelines on standard specifications.
One Source for All Needs
With ERW, HFW, DSAW, and rolled and welded capabilities under one roof, B&W Pipe covers the full diameter and pipe grade range most projects require without needing multiple vendors.
Proven Track Record
Welded steel pipe systems installed decades ago remain in operational service today, a track record that speaks directly to the reliability of properly specified and protected welded pipe.
Hard-to-Find Sizes and Expedited Delivery
B&W Pipe’s specialty is sourcing welded pipe specifications that standard distributors can’t source, with custom fabrication and expedited delivery available when project timelines demand it.
Common Applications for Welded Pipe
- Natural gas gathering, transmission, and distribution lines
- Water supply and municipal distribution systems
- Oil and hydrocarbon collection and transport
- Industrial process piping and circulation systems
- Compressed air and pneumatic systems
- Structural applications and piling systems
- Offshore and subsea pipeline systems
When Each Welding Method Makes Sense
ERW/HFW is the right call for small-to-medium-diameter, cost-sensitive projects requiring tight tolerances, general gathering, distribution, and standard industrial service.
DSAW is the premium choice for large-diameter, maximum-strength, critical applications where higher pressure ratings and larger OD requirements exceed what ERW production covers.
Rolled & Welded fits custom sizes and special applications where unique specifications fall outside what standard ERW and DSAW production windows provide.
Why Choose B&W Pipe for Welded Steel Pipe
B&W Pipe masters multiple welding technologies under one roof, giving project teams a single source for ERW, HFW, DSAW, and custom rolled and welded pipe rather than juggling separate vendors by diameter range.
With over 20 years of experience in welded pipe distribution, B&W Pipe maintains an in-stock inventory of hard-to-find sizes and specifications, an expert team that matches the right welding method to each application, and direct relationships with premium manufacturers that support rapid delivery on both standard and custom orders. Project support runs from initial specification through installation, with competitive pricing on volume and specialty orders alike.
Industry Standards and Compliance
B&W Pipe’s welded pipe meets API 5L certification for line pipe applications, ASTM A53 Grade B approval for general service, and ASTM A500 for structural applications. Compliance extends to ASME B31.8 for gas piping and applicable ASME B31.1 grades for power piping service. Full third-party inspections, mill certifications, and material traceability documentation are available for every order.
How to Get Started
Describe your application or provide engineering specifications, and B&W Pipe’s team recommends the optimal welding method, grade, and coating for the project. Fast quotes with accurate lead times follow specification review. Ordering is flexible from emergency quantities through full project supply with complete documentation, compliance verification, and technical support available throughout the project.
Talk to a Welded Pipe Specialist
B&W Pipe has supplied welded steel pipe for gas, water, and infrastructure projects from Katy, Texas since 2001, with manufacturing capabilities spanning ERW, HFW, DSAW, and custom rolled and welded production.
Call (281) 391-6688, email sales@bwpipe.biz, or visit bwpipeinc.com to discuss your welded pipe specifications, request a quote, or check current inventory.
Contact B&W Pipe, Inc.
Ready to source high-quality welded steel pipe for your next industrial project? Our team handles standard stock orders and complex, large-diameter, or niche-grade requirements alike.
Frequently Asked Questions
What's the difference between ERW and DSAW welded pipe?
ERW is produced by welding a single longitudinal seam using electrical resistance heat, suited to small-to-medium diameter applications. DSAW uses submerged arc welding on both the interior and exterior seam, supporting larger diameters and higher pressure ratings.
Is welded pipe as strong as seamless?
At the same grade and wall thickness, welded pipe’s pressure capacity can be reduced by a seam efficiency factor in certain design codes, while seamless achieves full rated capacity. For most general gathering, distribution, and structural applications, properly manufactured welded pipe meets every performance requirement at a lower cost.
What size welded pipe do you keep in stock?
B&W Pipe maintains inventory from small-diameter ERW through large-diameter DSAW, including hard-to-find sizes outside standard production windows. Contact the team for current stock on a specific size and grade.
Can welded pipe be used for high-pressure applications?
Yes, when the grade and wall thickness are specified correctly against the design pressure and applicable code’s seam efficiency requirements. DSAW in higher API 5L grades is commonly specified for high-pressure transmission service.
